Description

SPECIFICATIONS

Brand Name: FOGWOWO

Origin: Mainland China

Sprayer Type: Pump

Material: Metal

Model Number: 12071,12072,10344,10345,10346,10347,10348

Type: Sprayers

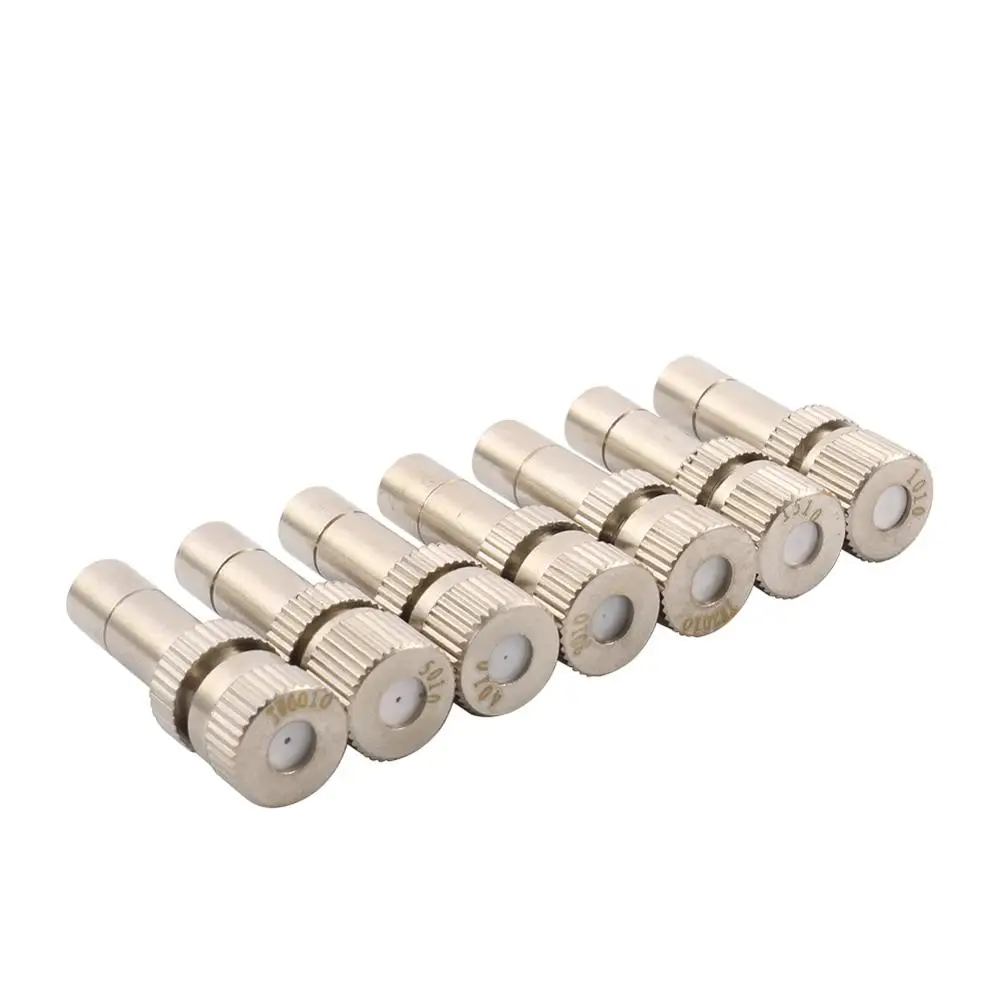

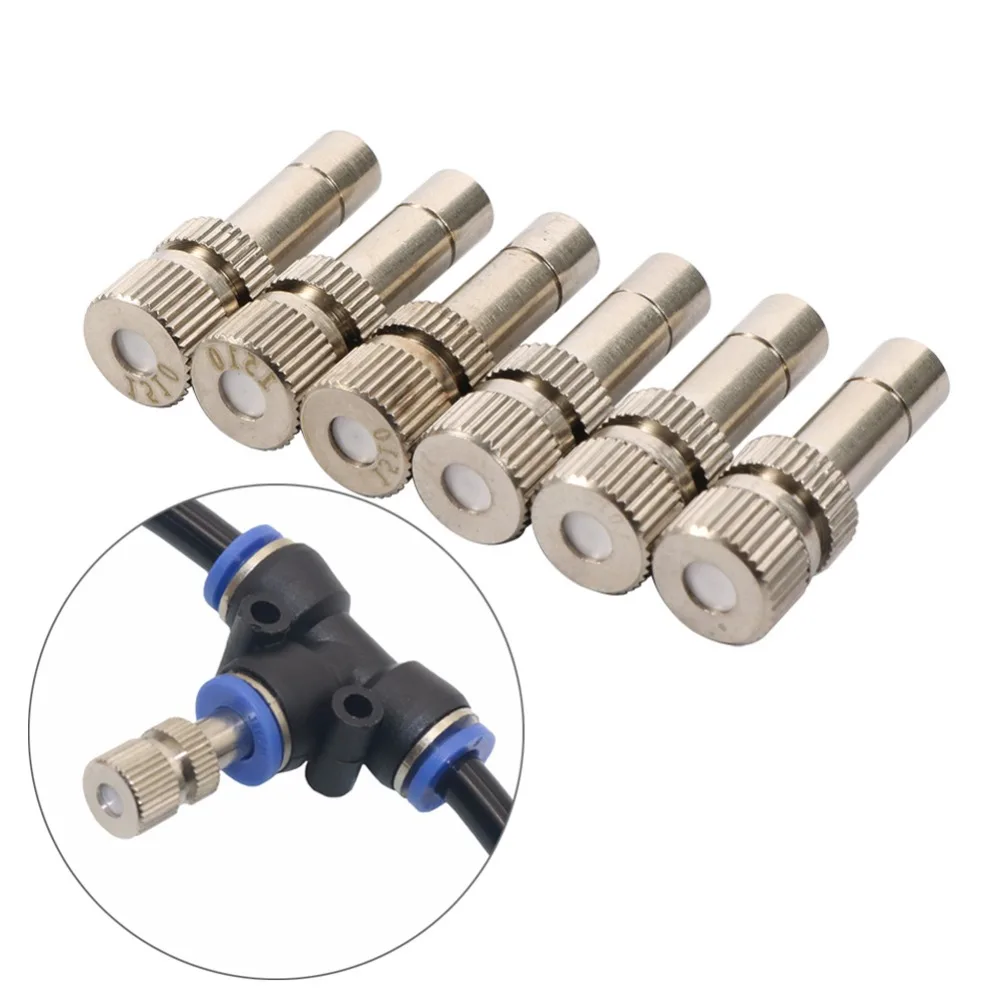

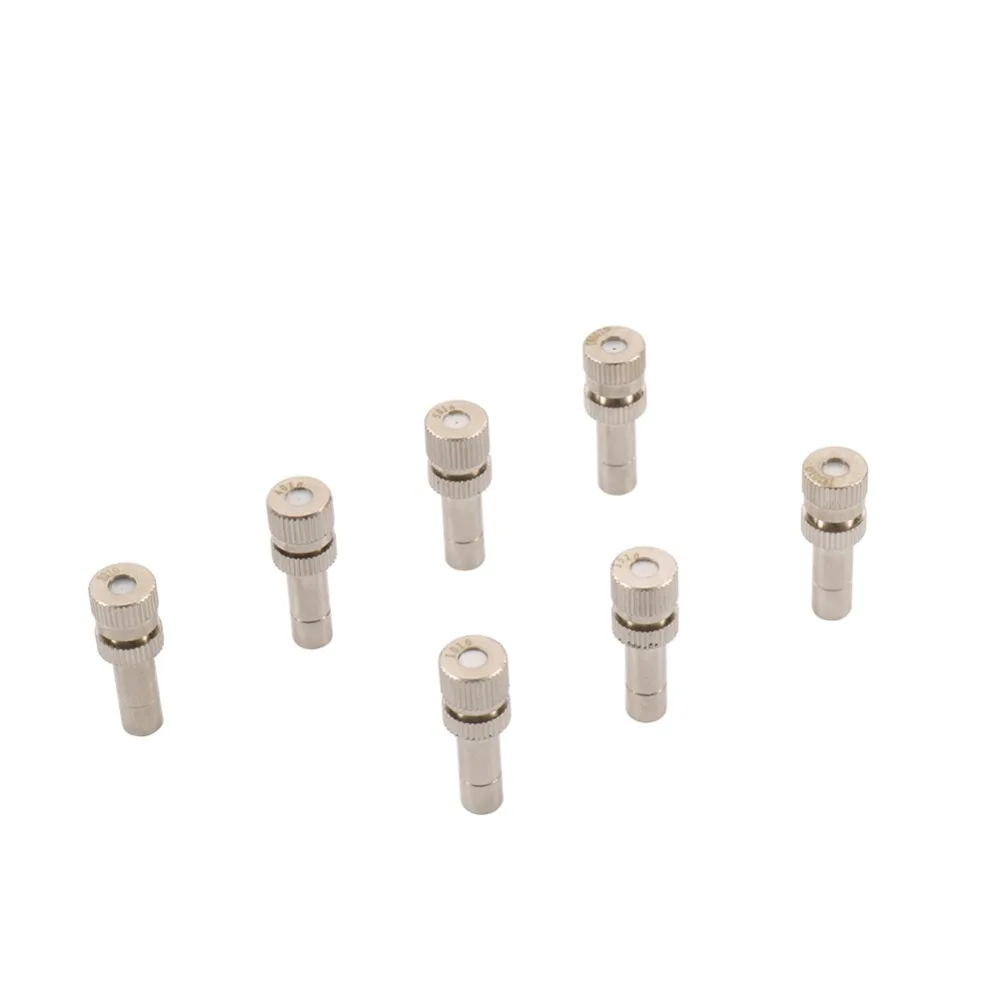

Name: 6mm Low-pressure Misting Nozzles

Metal Type: Brass

Nozzles Material: Brass nickel plated

Nozzles Connection size: 6mm

Nozzles Orifice: 0.1/0.15/0.2/0.3/0.4/0.5/0.6 mm

Pressure: 5~20 bar

Features: Anti drip valve

Application: Irrigation,disinfectant,humidification,dust cooling landscaping

Sale unit: 1 Pc

Features:

Not easy clogged,wear resistance,spray evenly, can effectively improve the quality and production efficiency. Can effectively regulate the humidification amount and the spray effect.

The series of nozzles no air-assisted, simple system installation. Mist spot are fine, up to 3-7 microns,fully atomized, energy saving,low cost and good effect.



Specification:

Name: 6mm Low-pressure Misting Nozzles

Nozzles Material: Brass nickel plated

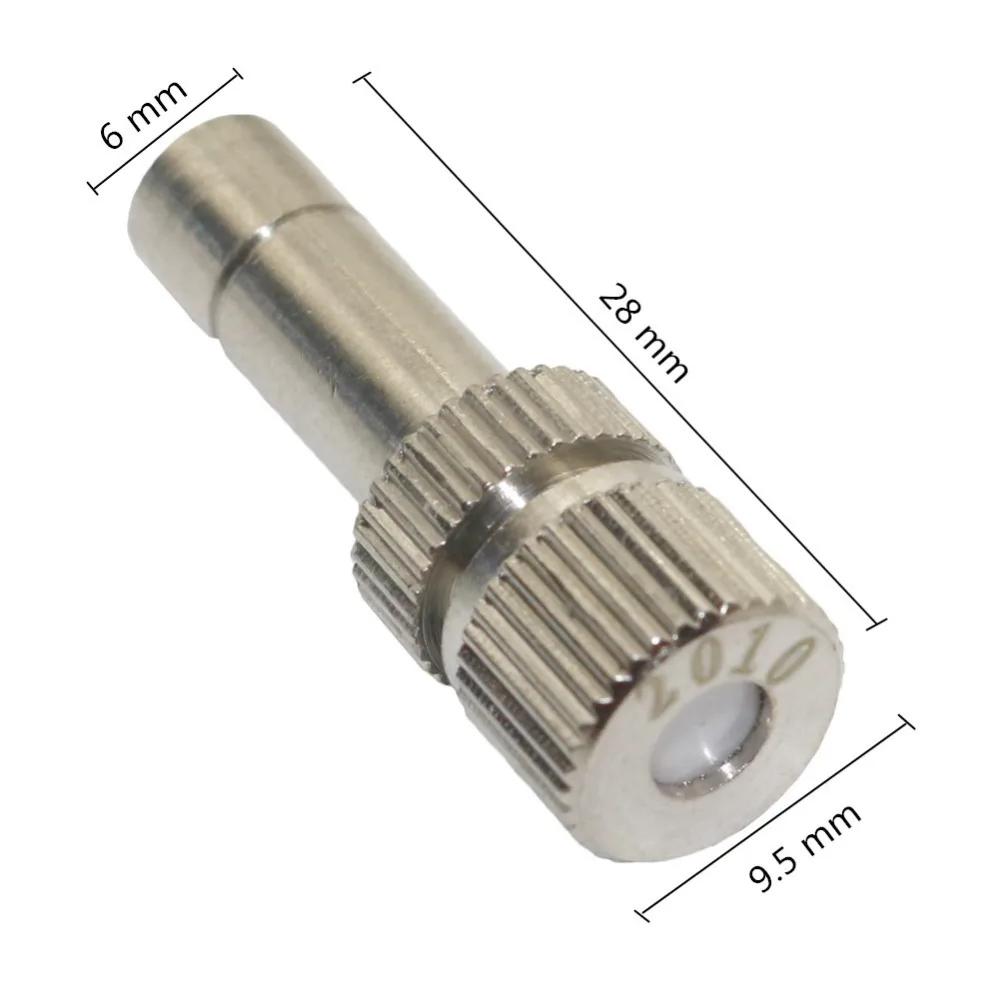

Nozzles Connection size: 6mm

Nozzles Orifice size: 0.1mm,0.15mm,0.2mm,0.3mm,0.4mm,0.5mm,0.6mm

Pressure:5~20bar

Features: Anti drip design

Application: Irrigation,disinfectant,humidification,dust cooling landscaping etc



Package include:

1 Pc x 6mm Low-pressure Misting Nozzles



Application Scope:

1. Cooling – outdoor restaurants,entertainment venues, stadiums, arenas, airports, bus stations, large gatherings, cooling animal farm pig, horse and sheep

2. dust removal – clear the air of dust particles, mainly used to control pollution of farm and Mine

3. Agriculture – for the family farm, cultivated field mushrooms, circus arena, aviary kennel and feeding farm, make the environment suitable for the growth of all kinds of poultry

4. Industrial – metal shop, machine shop, textile workshop, garment workshop, dyeing footwear, plastic injection molding, die casting heat treatment, glass, spray plating, electronic chemicals, metallurgy, leather, toy manufacturing, electronics manufacturing, for cooling dust removal

5. Special Use spaces – gardens, zoos, shopping centers, exhibitions, flowers farming, animal husbandry, and so on, humidification cooling, it can also be used to irrigate plants.



Note

It is manual measurement, there may be 1-2mm error.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you.
